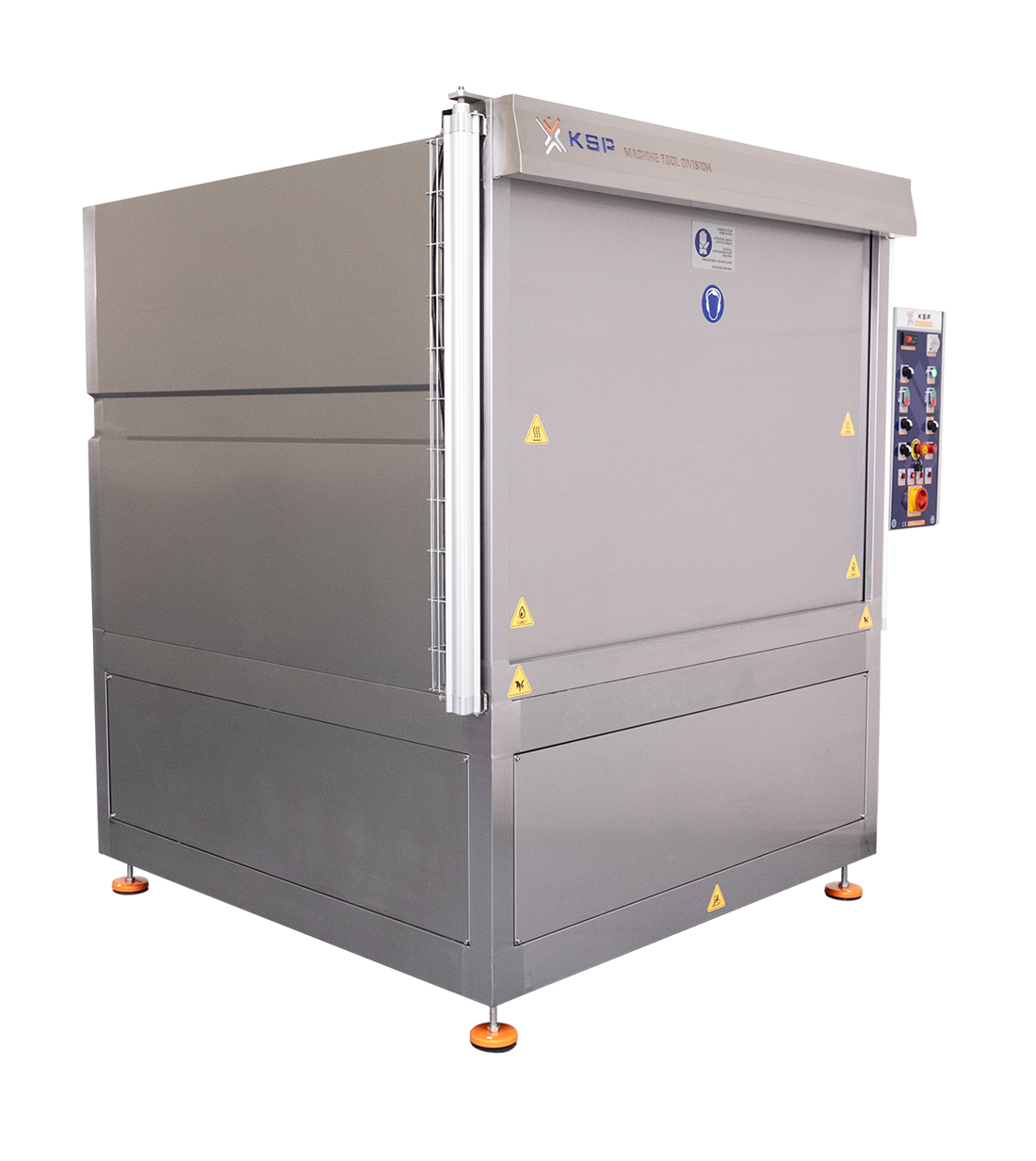

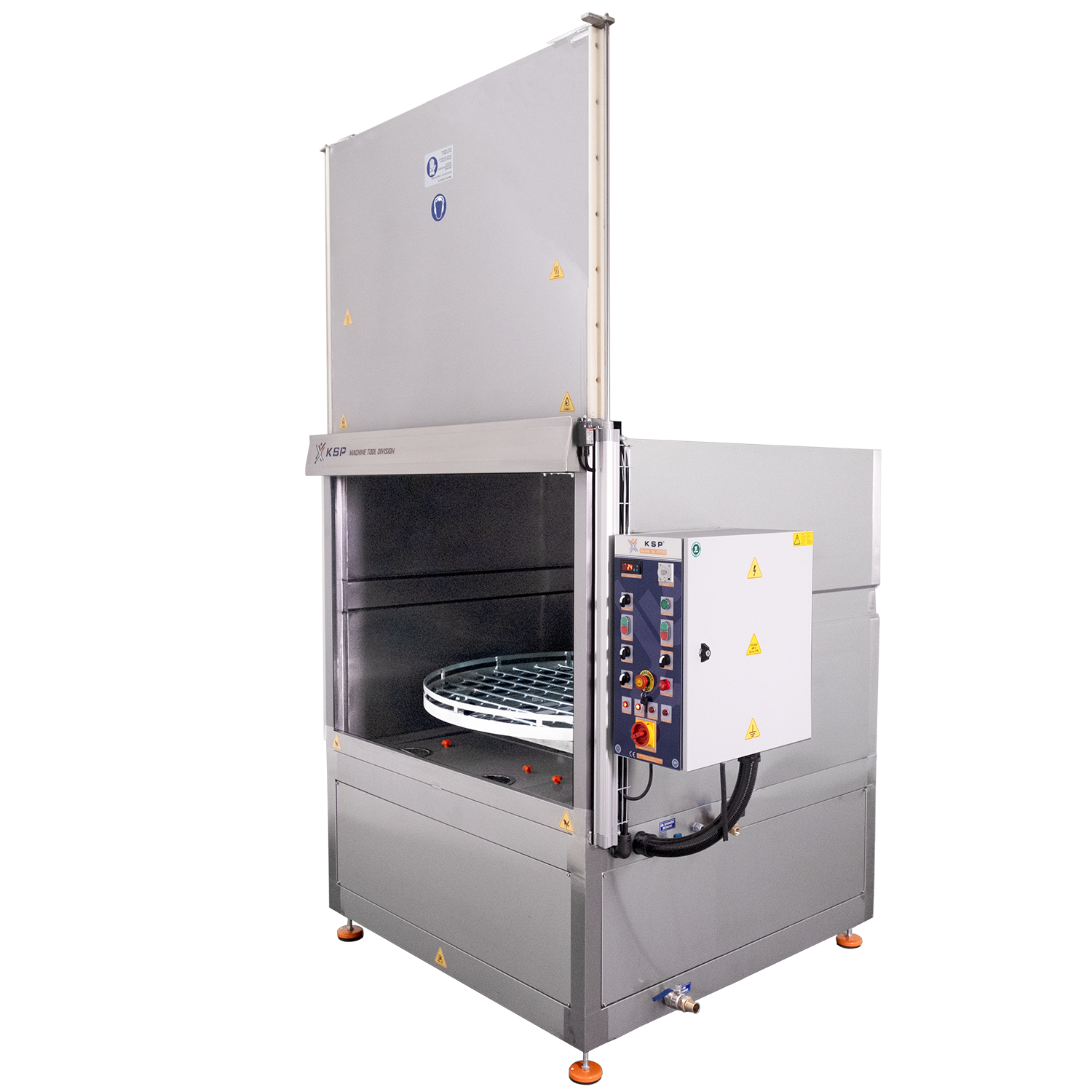

Industrial Front Loading Parts Washing Machines

Working Principle

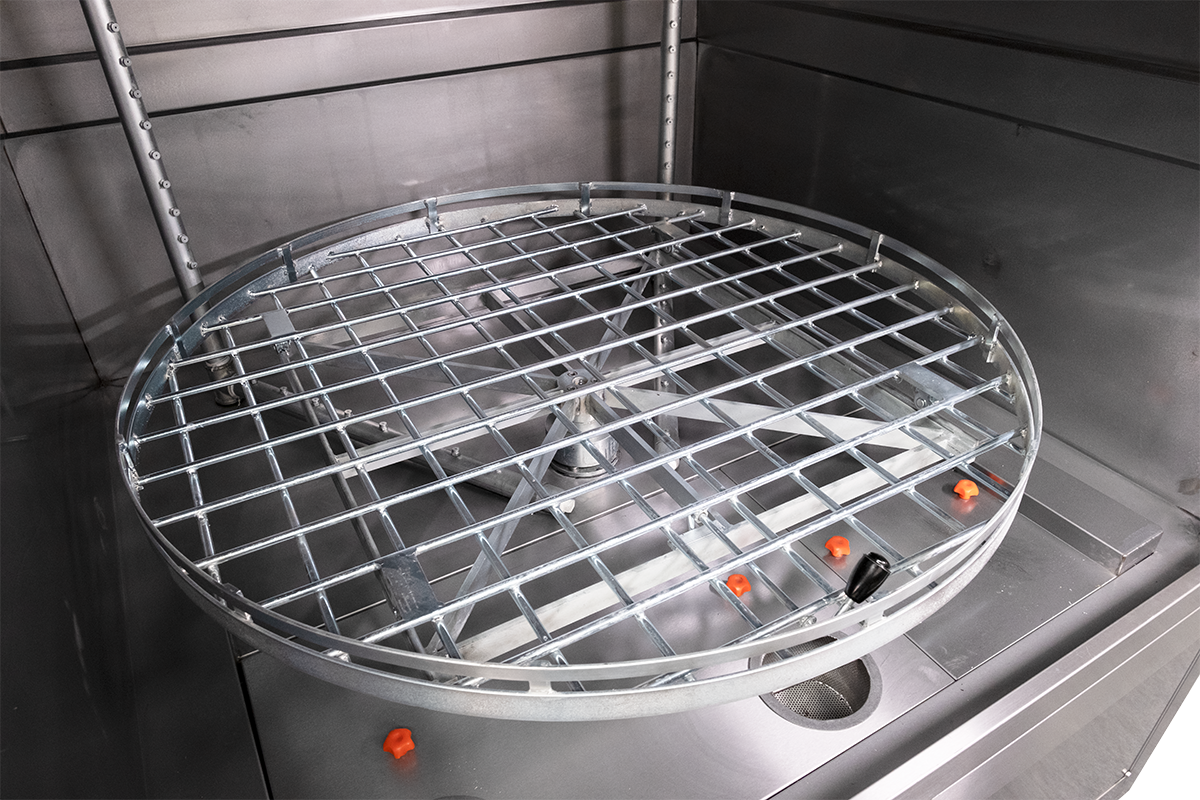

The parts which will be washed are placed on a basket that is placed on a stainless rotary platform with sliding system are washed in a closed cabinet with pressured hot water and detergent mixture. The washing process is done through water nozzles which are timed and compressive according to part structure, dirtiness rate; they clean the waste, oil, and chip on dirty surfaces in various angles. Machine has been designed for minimum consuming the water, detergent, electric, and time (work force) with cyclic and filtering water system.

General Specifications

• Stainless Steel Body, Basket and Pipes

• Cleaning Process Timing

• Developed to save water, detergent and energy

• Minimum water consumption by closed circuit water cycling system

• Heated water (solution) dispensed through jet nozzles to the part

• High user safety on pneumatic pistons

• Belt-Pulley driven rotary table

• A water level sensor is used to protect the pumps and heaters against dry running

• Heating elements are made of special material incoloy alloy

• European Electrical and Technical Components

• High-performance and reliable European Pumps

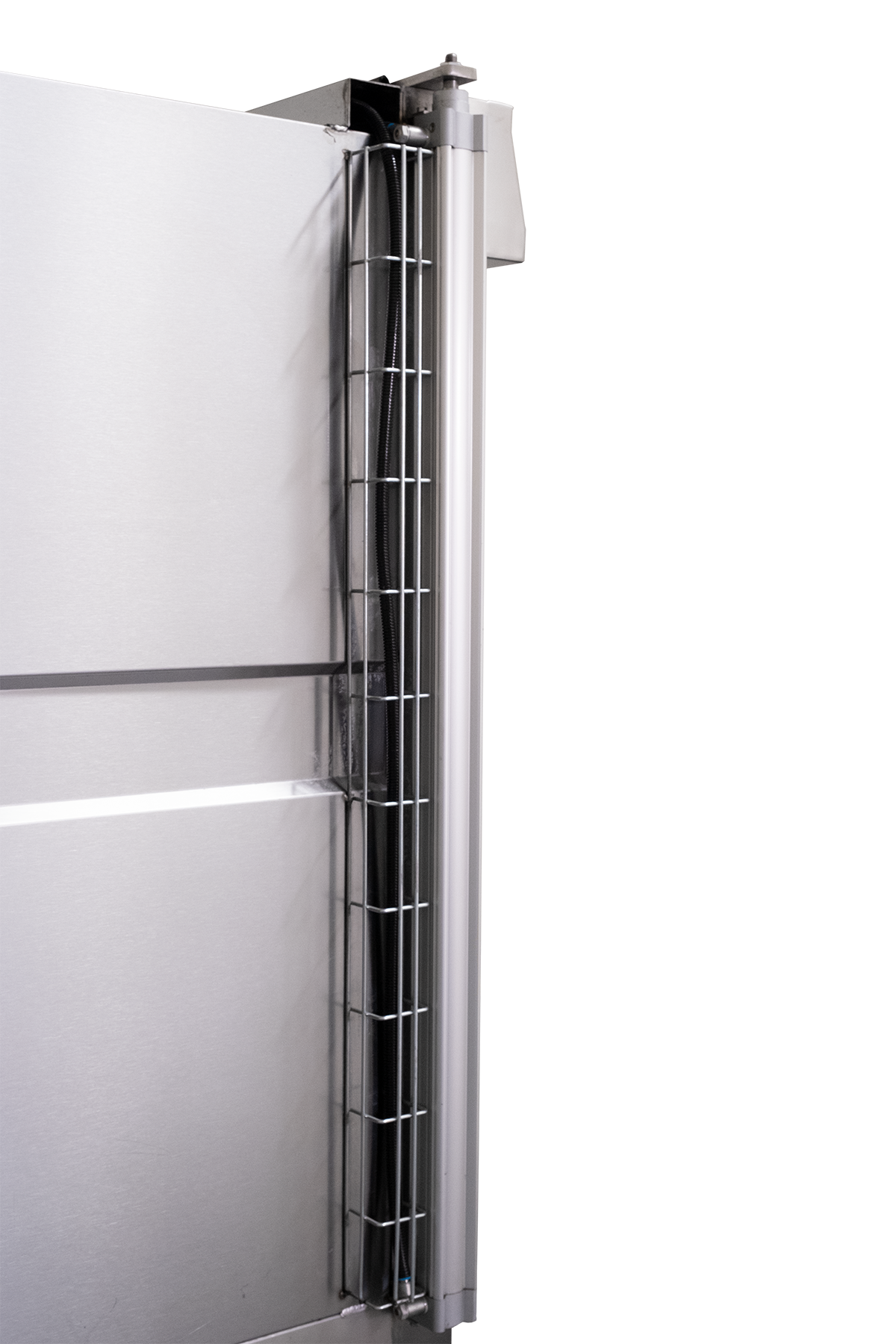

• Pneumatic Front Door System​
